Beyond VPNs: The Dark Art of DNS and ICMP Tunneling

Holla Amigos, lately I’ve been exploring various methods to bypass firewall-imposed restrictions. In this article, I invite you to join me in examining two popular techniques: DNS tunnels and ICMP tunnels, using the tools Iodine and Ptunnel.

Objective

Set up a simulated network environment where a firewall blocks most traffic — especially HTTP and HTTPS — but allows DNS and ICMP packets. The goal is to bypass these restrictions so a client can access a web server located on a different subnet using unconventional tunneling methods. We’ll use Ptunnel (ICMP) and Iodine (DNS) to establish communication between the client and the web server, bypassing the firewall rules.

Network Topology

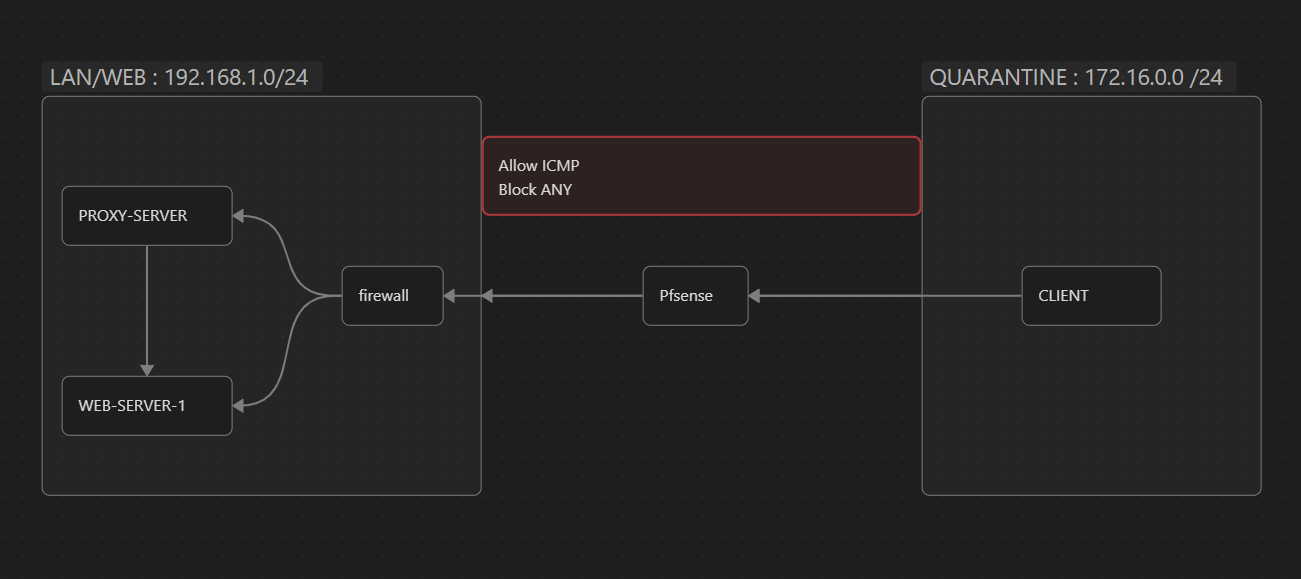

Here is the logical diagram of the lab:

PfSense (Firewall & Router)

• WAN: em0 (DHCP, Internet access via host)
• SERVICES: em1 – 10.10.0.1/24
• OFFLINE: em2 – 10.10.1.1/24

Virtual Machines

Role	IP Address	OS	Details	Networks

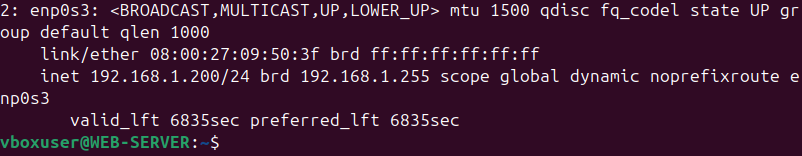

Web Server	10.10.0.2	Ubuntu	Static IP	Services
Client	10.10.1.3	Kali Linux	IP via DHCP	Offline

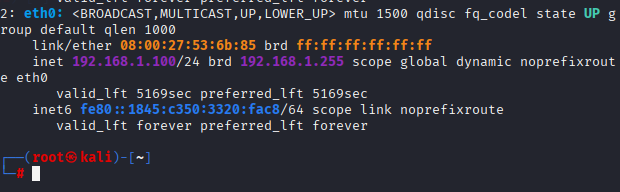

Proxy Server	10.10.0.3	Kali Linux	Static IP	Services
PfSense	See above	PfSense	Main router/firewall	offline/wan/services

Firewall Constraints

• Client and web server are on different subnets.
• Proxy server and web server are on the same subnet.

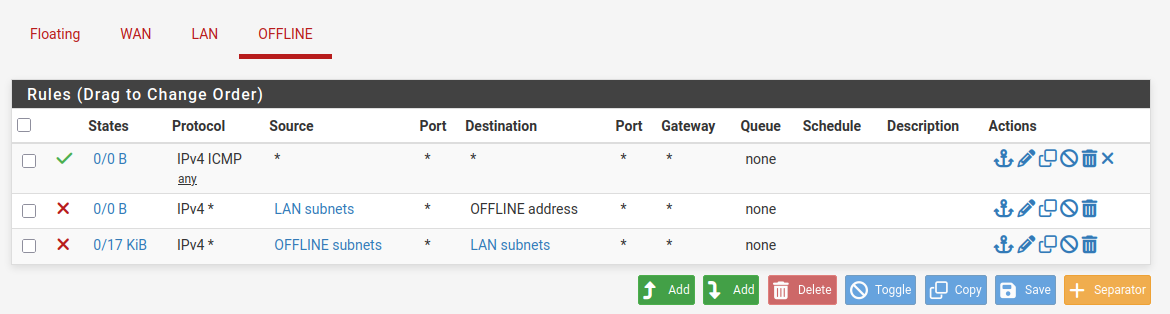

• PfSense blocks all inter-network communications, except ICMP and DNS.

Tools & Configuration

🔹 Ptunnel — ICMP Tunnel

Ptunnel allows TCP traffic to be encapsulated within ICMP packets (useful when only ping is allowed).

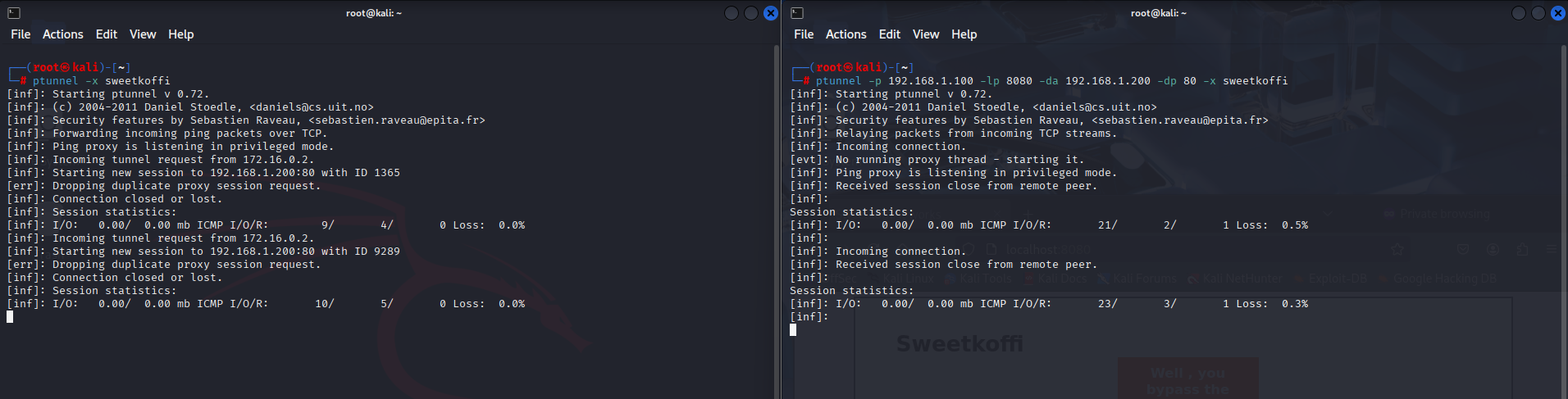

Start the server (on the proxy 10.10.0.3):

ptunnel -x sweetkoffi

Start the client (on Kali 10.10.1.3):

ptunnel -p 10.10.0.3 -lp 8080 -da 10.10.0.2 -dp 80 -x sweetkoffi

The client can now access the web server via: http://127.0.0.1:8080

🔹 Iodine — DNS Tunnel

Iodine allows IP traffic to be tunneled through DNS queries. Very useful in environments where only port 53 is allowed.

Pre-requisites

DNS Configuration on PfSense — add a Domain Override in the DNS Resolver:

• Domain: tunnel.sweetkoffi.net (whatever you want)
• DNS Server: 10.10.0.3 (proxy)

By adding this DNS override, we enable DNS requests from the client to be answered by our custom DNS server running on iodined.

On the proxy server (Kali 10.10.0.3):

iodined -cP 10.10.1.50 tunnel.sweetkoffi.net -DD

On the client (Kali 10.10.1.3):

iodine -f tunnel.sweetkoffi.net

Once connected, a new network tunnel is established (e.g., dns0) and can be used to route traffic.

As a demonstration, we’ll also establish an SSH tunnel to use the proxy server as a SOCKS proxy:

ssh -N -D 8080 kali@10.10.0.3

Then configure your web browser to use a manual proxy setup:

• SOCKS HOST: 127.0.0.1
• PORT: 8080
• SOCKS v4

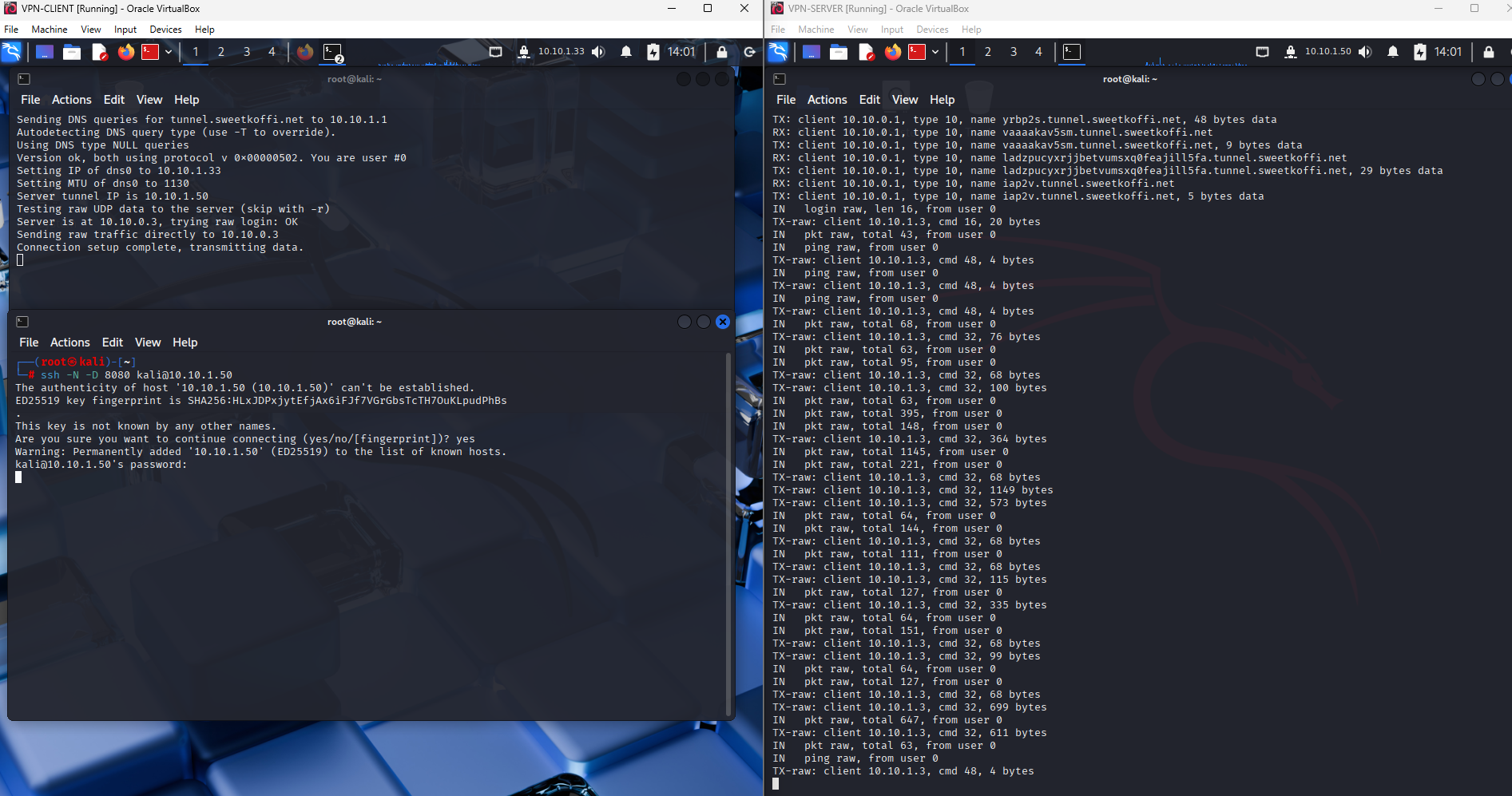

Now all web traffic is forwarded through our proxy server via the DNS tunnel. The firewall can no longer block our HTTP (or other) connections.

Conclusion

This lab demonstrates how to bypass strict firewall rules by using commonly overlooked protocols like ICMP and DNS to establish tunnels. While these techniques have legitimate use cases (e.g., accessing resources in restricted environments), they also pose serious security risks if not monitored properly.
